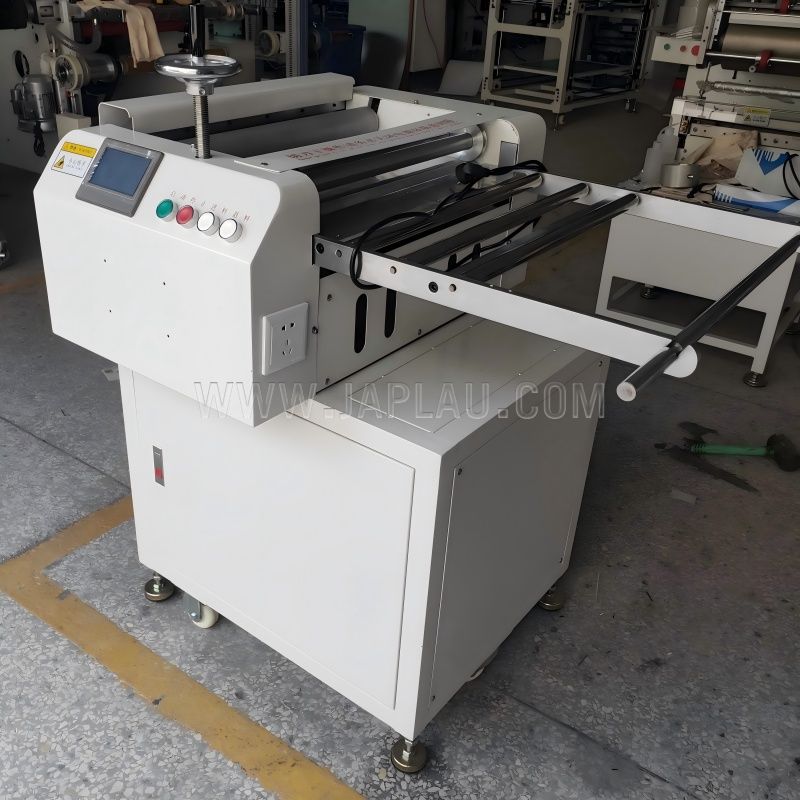

Technical features:
1) The control system adopts a PLC programmable controller, combined with a 4.3 inch high-performance color
human-machine interface
2) Feeding system: Adopting 400W servo motor and driver; The cutting width and speed can be adjusted freely on
the human-machine interface and can be adjusted slightly Adjustable, up to 130 knives per minute, adjustable
cutting depth, simple machine operation, and user-friendly design .
Parameter configuration: The 550 type cutting motor uses a 120W brake motor, and the feeding motor uses a
400W servo motor. The feeding width is ≤ 530mm, the thickness is ≤ 10mm, and the longest material cutting
range is 3-9999mm.
There are 5 slitting circular knives, and the machine dimensions are 1100mm*1050mm * 1100mm, both single
section and total number can be set, weight: 190kg, voltage: 220V * 50HZ
