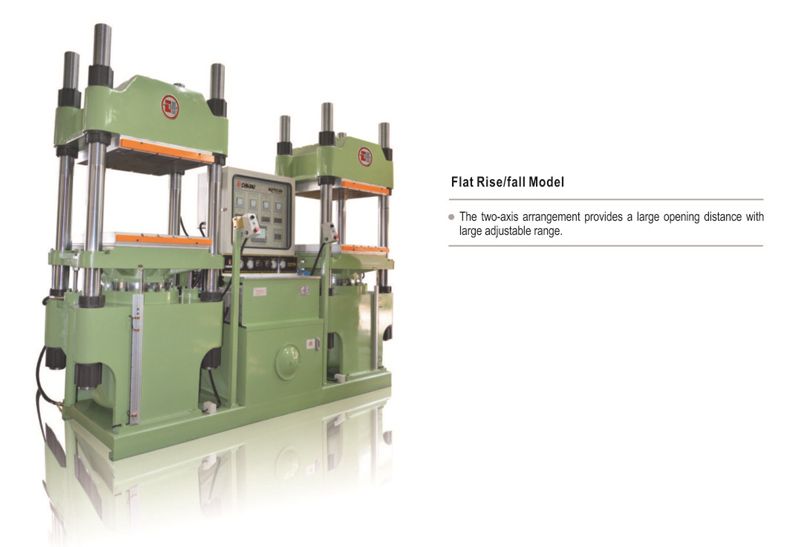

Compression Molding Press

CE compression press

• Model		100T	150T	200T	250T	300T	400T	500T
  Output(Ton)		100	150	200	250	300	400	500
  Stroke)MM		400	250	250	250	300	300	300
  Table(MM)		400*400	460*460	510*510	650*600	650*650	800*800	850*850
  Cylinder bore(MM)		255	310	356	400	450	500	560
  Horsepower(HP)		5.5*2	5.5*2	7.5*2	7.5*2	7.5*2	10*2	10*2
  Mould opening			Upper opening and lower-falling-Mould in and out 2RT/3RT/4RT
  Double-axis ele heating(Kw)		14	18	25	33	36	52.8	72
  Total electricity(Kw)		25	29	40	48	51	54.8	94
  Weight(KG)		3500	6500	7500	9000	11000	16500	21000
  Machine size(MM)		2475*1780*1550	2840*2100*1800	2850*2230*1900	3350*2550*2100	3400*2550*2150	3650*2800*2400	4000*3000*2650

•


• Steam heating ; special middle layer with thermal insulated function  ; suitable for multi-moud operation.

•


rubber hydraulic machine  characteristics

· With slow calibration function, calibration is more accurate and safer;

· Suitable for all kinds of two-layer or multi-layer molds, it is a new type of multi-functional model;

· Adopt dual-power independent oil circuit design, stable, quiet, low failure rate, and two shafts can run simultaneously;

· With adjustable and slow mold clamping function, adapt to the molding conditions of different module types;

· Accurate positioning of entering and exiting molds, 100% positioning safety, to ensure that the mold is not damaged.
