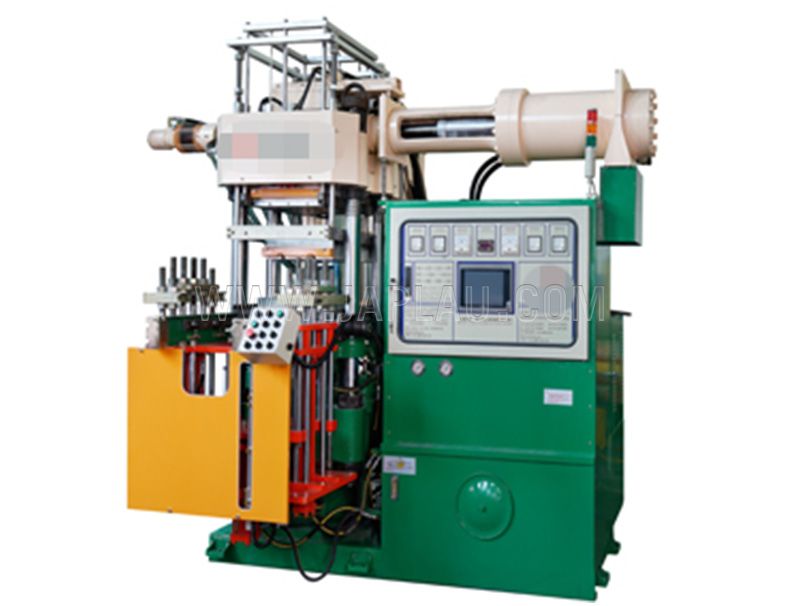

Rubber Injection Molding Machine

Machine Features:
Turn 1. Provincial patent design, save the traditional shot mold transfer without burrs residue;
2. Injection control precision, without waste;
3. The injection head not burnt, cooling effect is good.

Full-ratio oil circuit system.

Streamlined no dead Angle back to material non-return valve design.

Full-direction computerized monitor&control system.

High-precision optical-ruler injeciton control,matching the 3-phase injection control.

Equipped with Japan-made infrared safety-detector.

	Technical parameters of Horizontal Rubber Injection Molding Machine Series
Model		100T	200T	300T	400T	500T
Output(Ton)		100	200	300	400	500
Stroke)MM		400	580	580	580	580
Table(MM)		450*450	500*510	600*650	700*700	800*800
Cylinder bore(MM)		255	356	450	500	560
Injection capacity(CC)		900	1500/3000	2000/3000	3000/4000	4000/5000
Horsepower(HP)		10	15	20		25

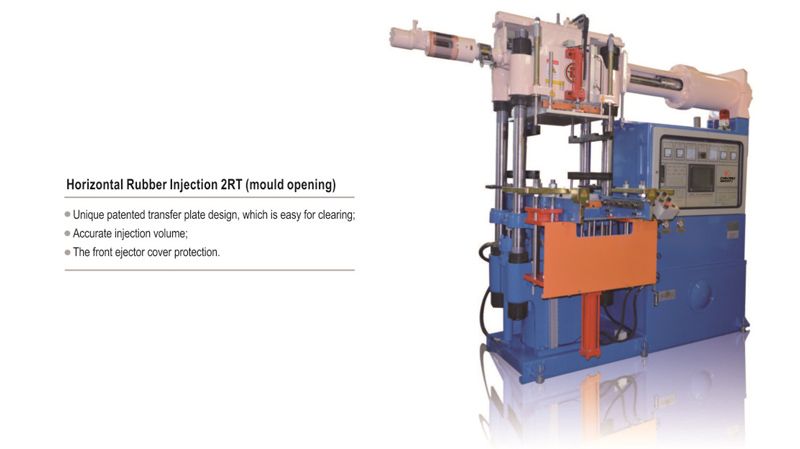

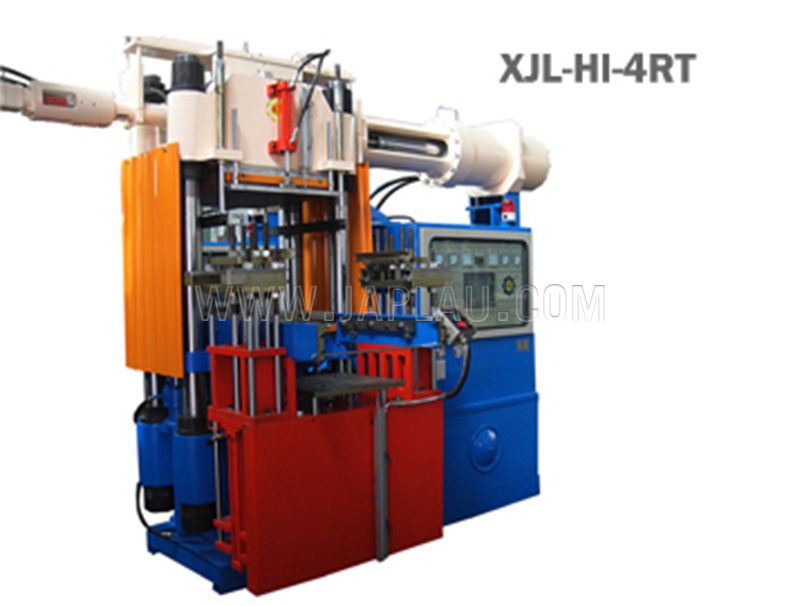

Mould opening			Upper opening and lower-falling-Mould in and out 2RT/3RT/4RT
Single-axis electric heating(Kw)		10.2	16.15	19.75	28.8	33.6
Total electricity(Kw)		22	31.49	39.09	51.64	55.1
Machine size(MM)		325026502400	330027002550	380029002650	410031002900	495031503100

Double-spiral close-circuit temperture control system.

Multiple-phase material feed-in bubble removal design

Can be matched with cold&hot flux mold design.

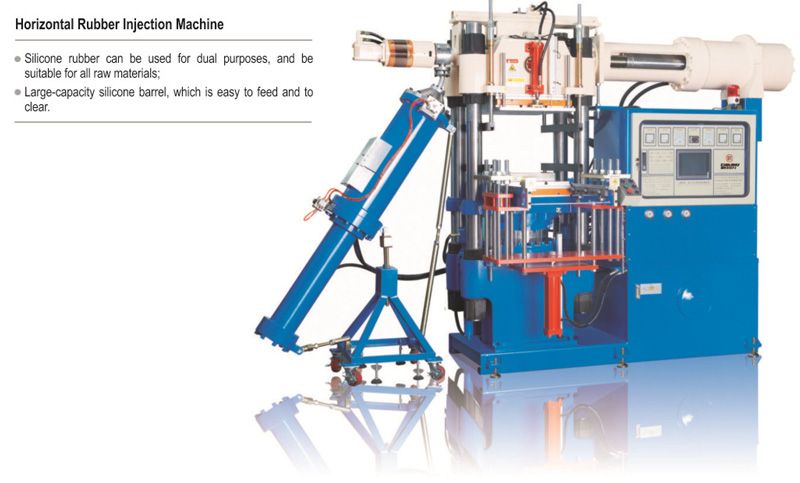

Silicone large capacity feeding barrel, can feed material 20KG-25KG one-time.

Product Details

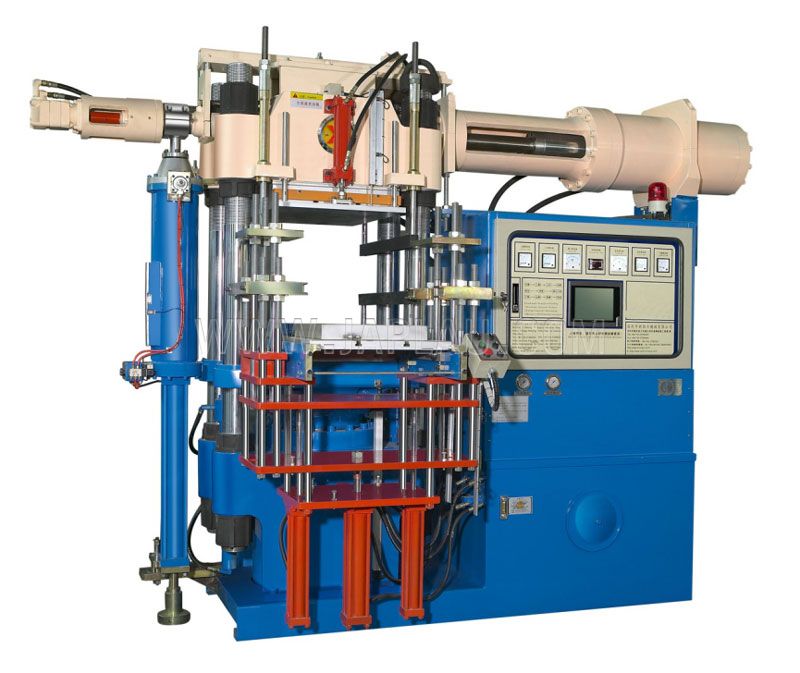

Horizontal Injection Machine
