Patent design of transfer ejection plate ; convenient to remove materials ;
Precise ejection amount ;
Protected with front roof housing.
Special desin of injection plate ;
No dead mass ; convenient to change materials ;
Alternative multi-layer die sinking structure.

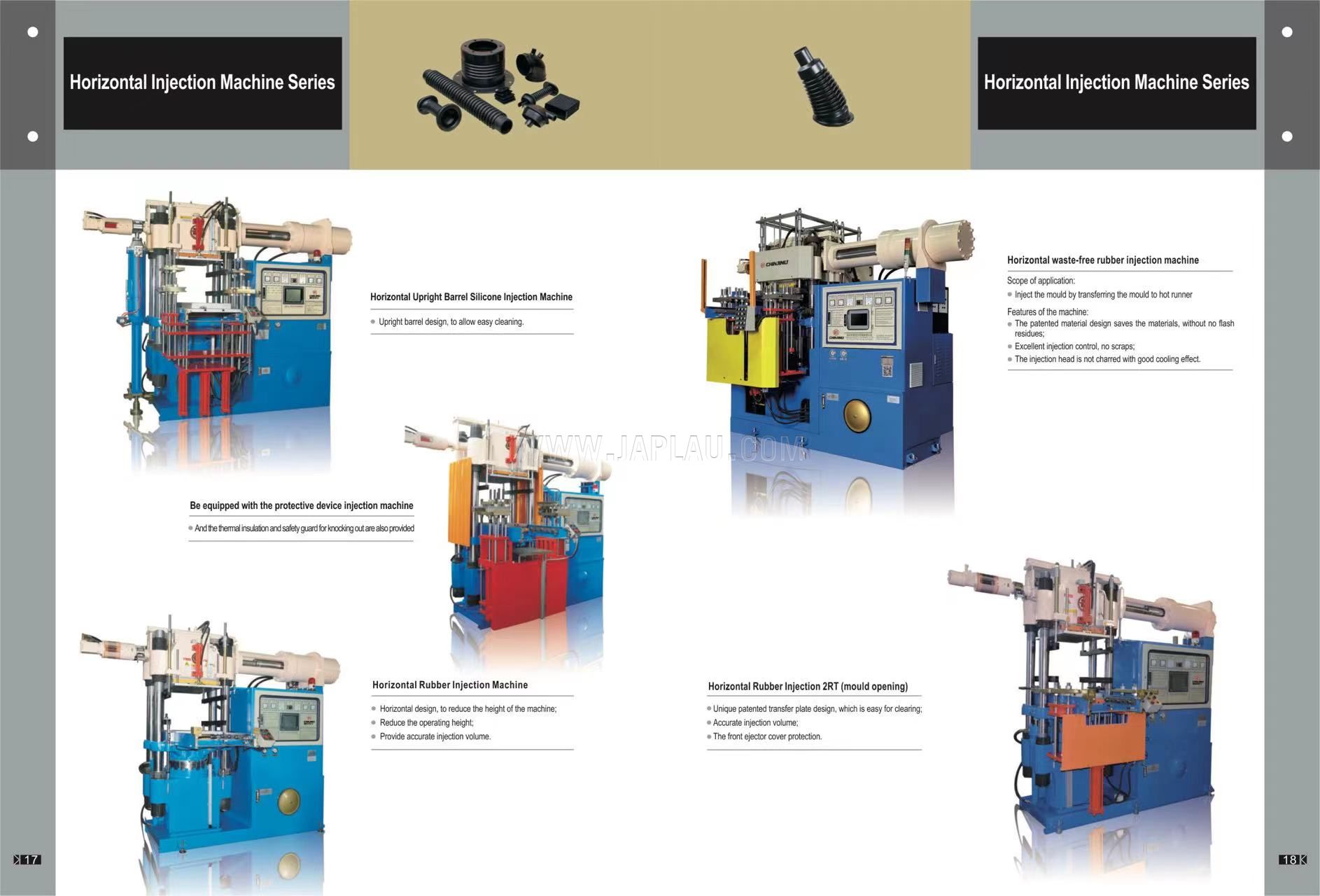

| Technical parameters of Horizontal Rubber Injection Molding Machine Series | ||||||
| Model | 100T | 200T | 300T | 400T | 500T | |
| Output(Ton) | 100 | 200 | 300 | 400 | 500 | |
| Stroke)MM | 400 | 580 | 580 | 580 | 580 | |
| Table(MM) | 450*450 | 500*510 | 600*650 | 700*700 | 800*800 | |
| Cylinder bore(MM) | 255 | 356 | 450 | 500 | 560 | |
| Injection capacity(CC) | 900 | 1500/3000 | 2000/3000 | 3000/4000 | 4000/5000 | |
| Horsepower(HP) | 10 | 15 | 20 | 25 | ||
| Mould opening | Upper opening and lower-falling-Mould in and out 2RT/3RT/4RT | |||||
| Single-axis electric heating(Kw) | 10.2 | 16.15 | 19.75 | 28.8 | 33.6 | |
| Total electricity(Kw) | 22 | 31.49 | 39.09 | 51.64 | 55.1 | |
| Machine size(MM) | 3250*2650*2400 | 3300*2700*2550 | 3800*2900*2650 | 4100*3100*2900 | 4950*3150*3100 |
Range of application:
Transfer mould/hot runner ejection mould ;
Feature of drilling crew:
Patent design of material saving ; economization of traditional transfer moulds ; no burr residues ;
Precise control of ejection amount ; no scrape ;
No charring of injection head ; easy to be cooled .
