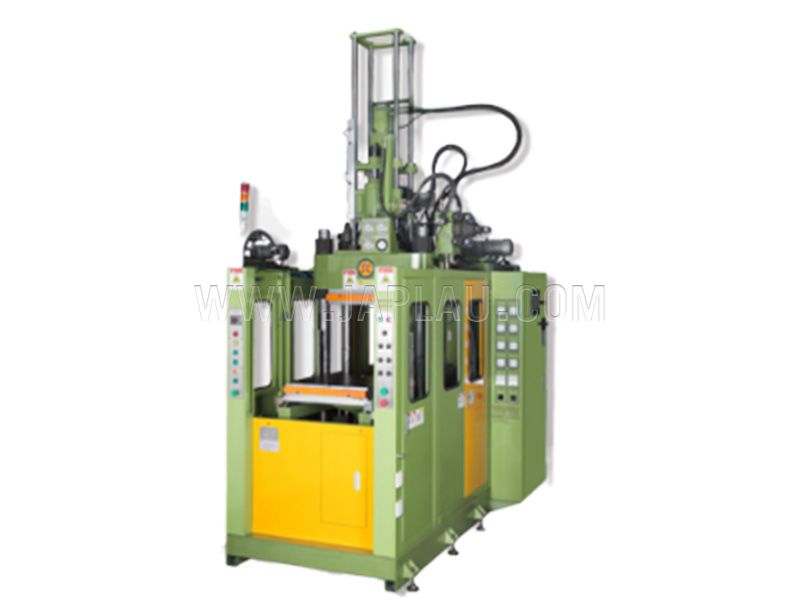

Vertical Rubber Injection Machine

Model	100T	200T	300T	400T	500T
Output(Ton)	100	200	300	400	500
Stroke)MM	400	580	580	580	580
Table(MM)	450*450	500*510	600*650	700*700	800*800
Cylinder bore(MM)	255	356	450	500	560
Injection capacity(CC)	900	2000	3000	4000	4000/5000
Horsepower(HP)	10	15	20	25	25
Mould opening		Upper opening and lower-falling-Mould in and out 2RT/3RT/4RT
Single-axis electric heating(Kw)	10.2	16.15	19.75	25	33.6
Total electricity(Kw)	22	31.49	39.09	51.64	55.1
Machine size(MM)	200027504000	455028502150	380029002650	260032005200	270034505400

Vertical rubber injection machine(FIFO TYPE)

1. Small ejection amount; precise ejection amount

2. Rail positioning for mould entering&leaving

3. FIFO structure, convenient to change rubber

Product Details

Moving vertical injection four-cylinder balanced structure,ultra-stable injection force.

Optimized feeding plunger greatly reducing the amount of plastic drain,quick and easy to maintenance and change material.

Innovation shoot tube thermostat system plus ultra-short nozzle,to make oddments more less and avoid minium pressure loss,to meet the requirements of the injection molding process various hardness of rubber.

Machine specification under 500Ton adopt interationally popular First in First Out injection style.

Lifting and hanging more can be mechanical synchronous to the gears,template layers action smooth,repeat high accuracy.

Fully enclosed safety bumpers and light shed, a higher level equipment of operational safety.

Hot plate heating partitioning control,temperature more umifom.

Direct drive variable displacement pump,high efficiency,stable.

Large working platform design.

More automation functionality for optional.
